Q. Write an 8085 program and draw a flowchart to Shift Left 8-bit By 2-bit.(8085 Microprocessor Program)

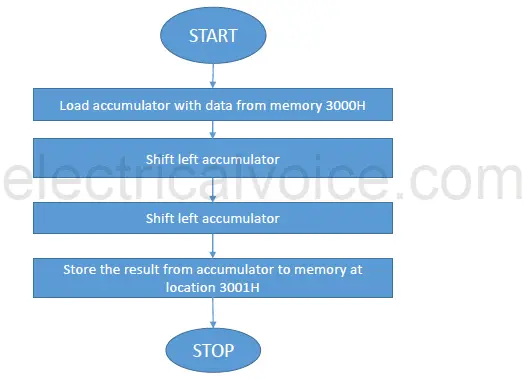

Flowchart/Algorithm

Program

Address Mnemonics Operand Opcode Comments
2000 LDA 3000 H 3A Load A with data from 3000 H
2001 00
2002 30
2003 RAL 17 Shift Left Accumulator
2004 RAL 17 Shift Left Accumulator
2005 STA 3001 H 32 Store the result at location 3001 H
2006 01
2007 30
2008 HLT 76 Halt

Output

Before Execution:

3000H: 05H

After Execution:

3001H: 14H

Program Explanation

Program to Shift Left 8-bit By 2-bit
